Tri-color led flexible strip:

1. Two-color light strip
It is composed of two different colors of LED lamp beads. Its characteristic is that it has the function of switching and mixing two colors of light. For example, a red and green two-color light strip can obtain red light, green light, or colored light that alternates between red and green through the settings of the controller. Since there are only two colors of lamp beads, the price of two-color light strips is relatively cheaper and suitable for some simple and practical scenes, such as showcase lighting, home decoration, etc.

2. Controller of dual-color temperature light strip
The controller of the two-color light strip is an important device for controlling the brightness and color of the two-color light strip. It usually uses PWM (pulse width modulation) dimming technology to achieve precise control of the color and brightness of the light strip. PWM technology divides the input signal into several isochronous periods, and determines the level of the output signal in each period, thereby controlling the output current and achieving precise dimming.

3. PWM dimming
PWM dimming technology is widely used, not only in two-color light strips, but also in various lighting fixtures such as colored light strips, ordinary light bulbs, and LED lights. The principle of PWM dimming is to use a pulse signal controller to switch the circuit to achieve control of the current. When the controller outputs a high-level signal, the light strip is turned on, current flows, and the light turns on; when the controller outputs a low-level signal, the light strip is disconnected, the current is cut off, and the light goes out. Through frequent switching operations, the size of the current can be controlled to achieve precise dimming.

1.The parameter of 2835 led strips:

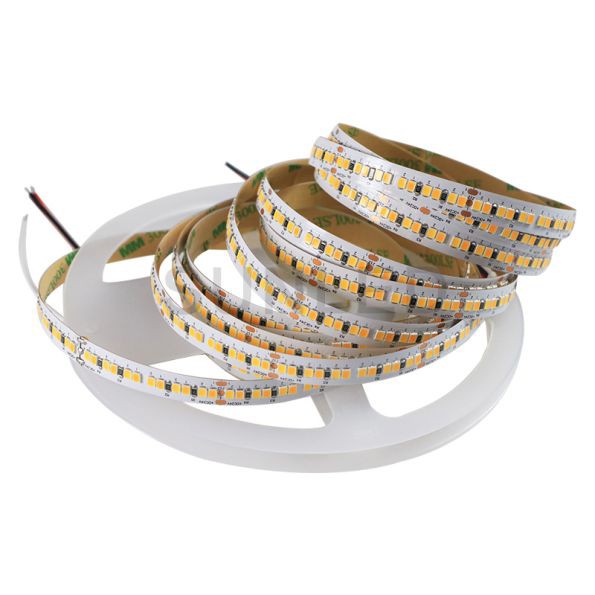

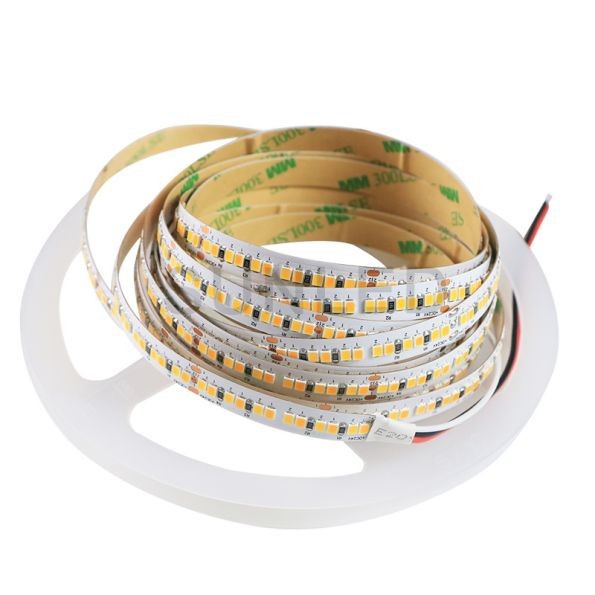

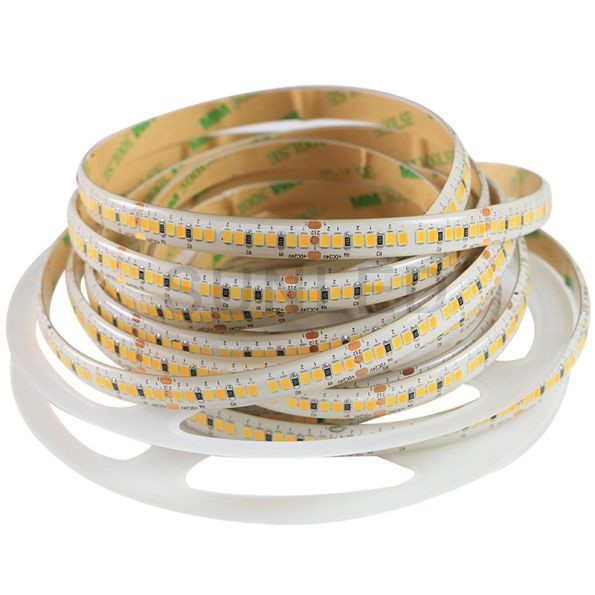

Products name	tri-color 2835 led strip
voltage	DC24V
power	18w/m
led chip	smd2835,240leds/m
material	double FPC
color	2000-10000K
lumen	90lm/w
length	5M/roll
IP rating	IP20
width	10mm
Operating temperature	-25-35°C
Life time	50000 hours

2.The information of led strips:

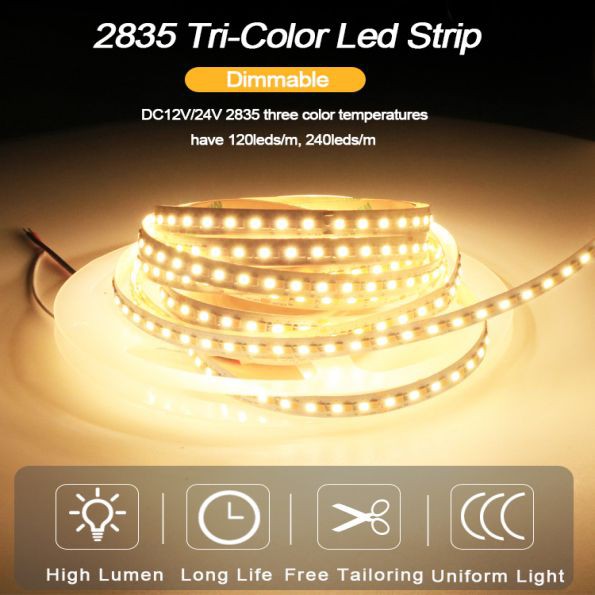

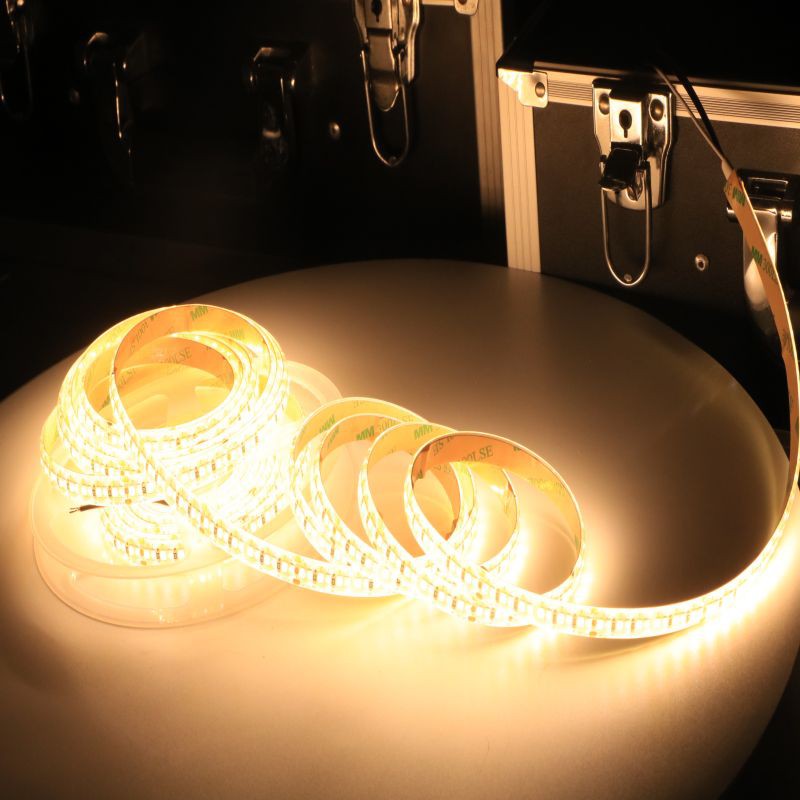

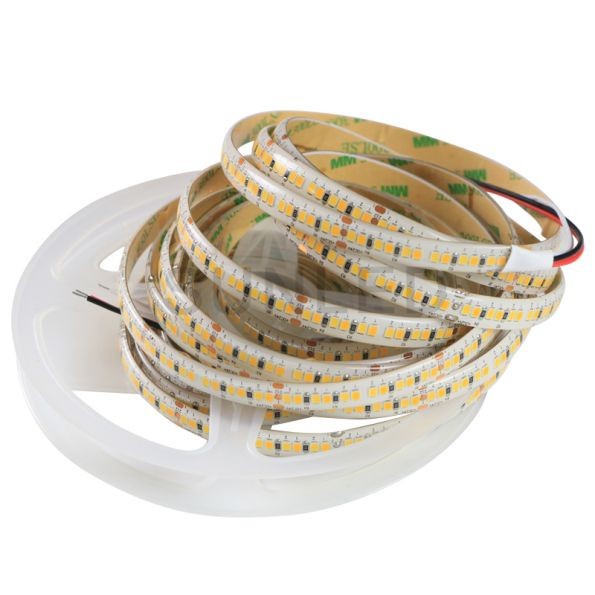

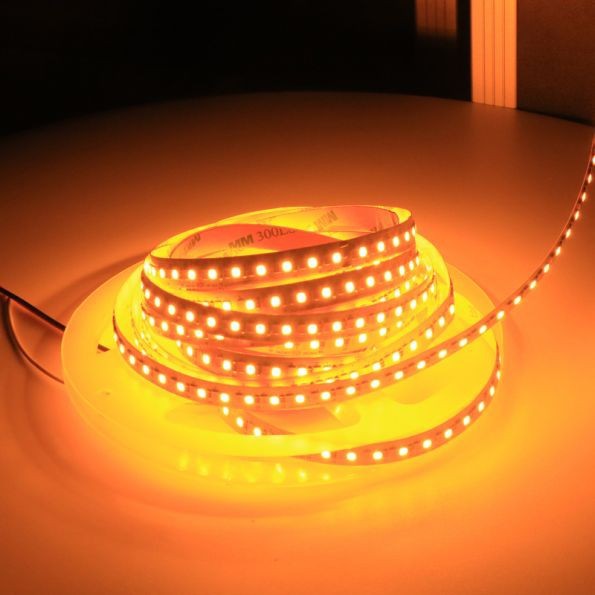

	Dimmable led strip light

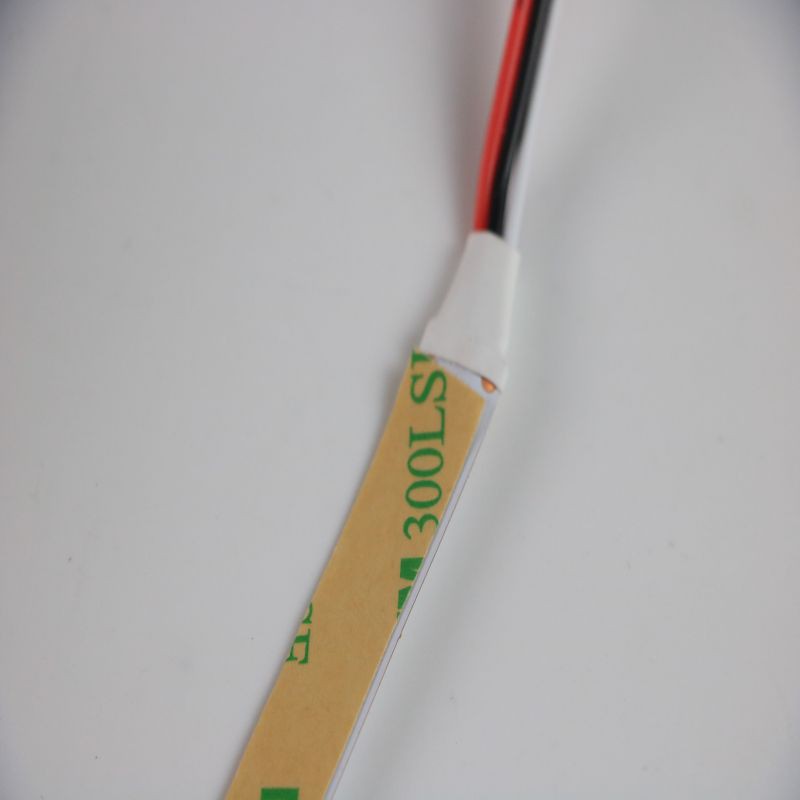

with yellow color of adhesive backing very sticky Easy to installation

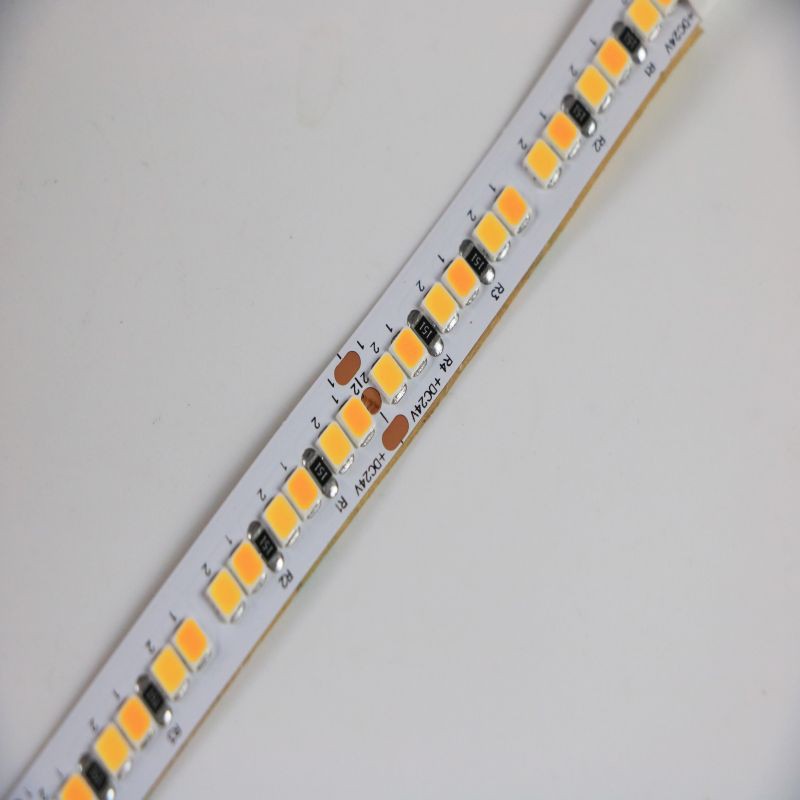

	6leds per group free cut cut along the logo

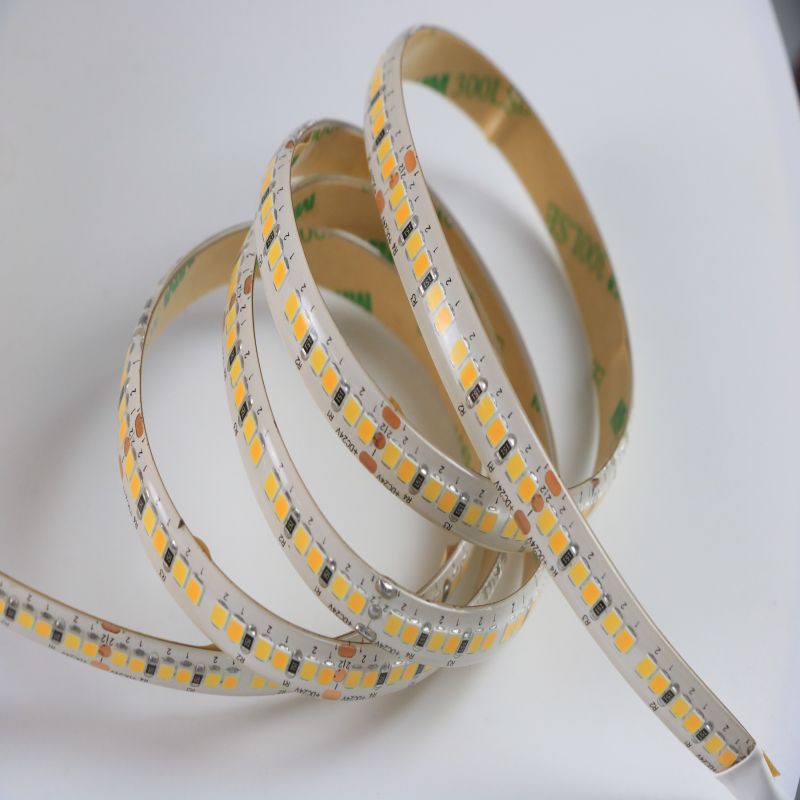

soft 5meter per roll IP65 waterproof

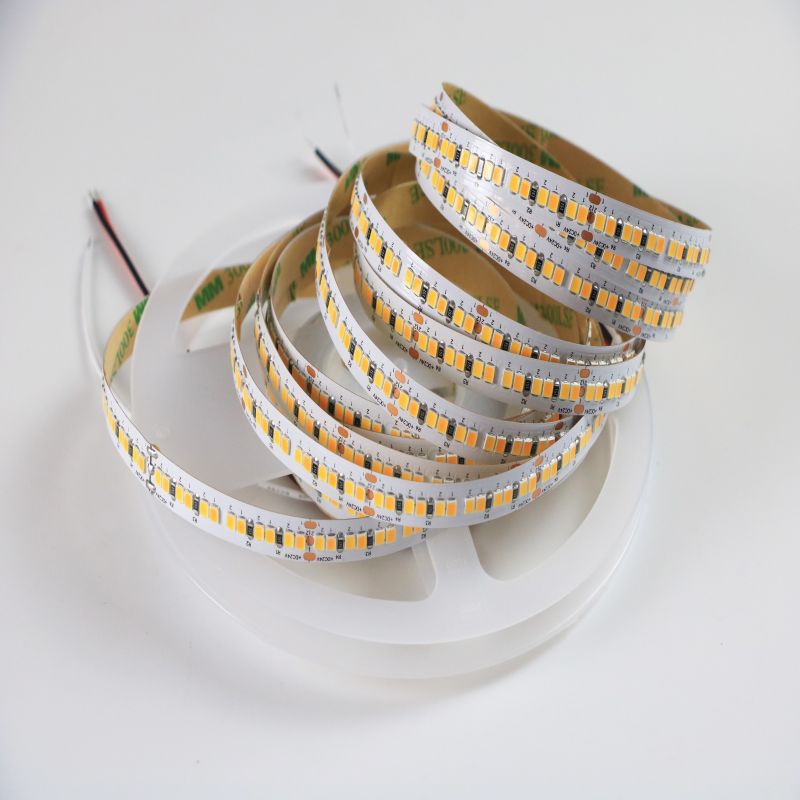

	highligting lamp beads copper bracket Doal FPC board
