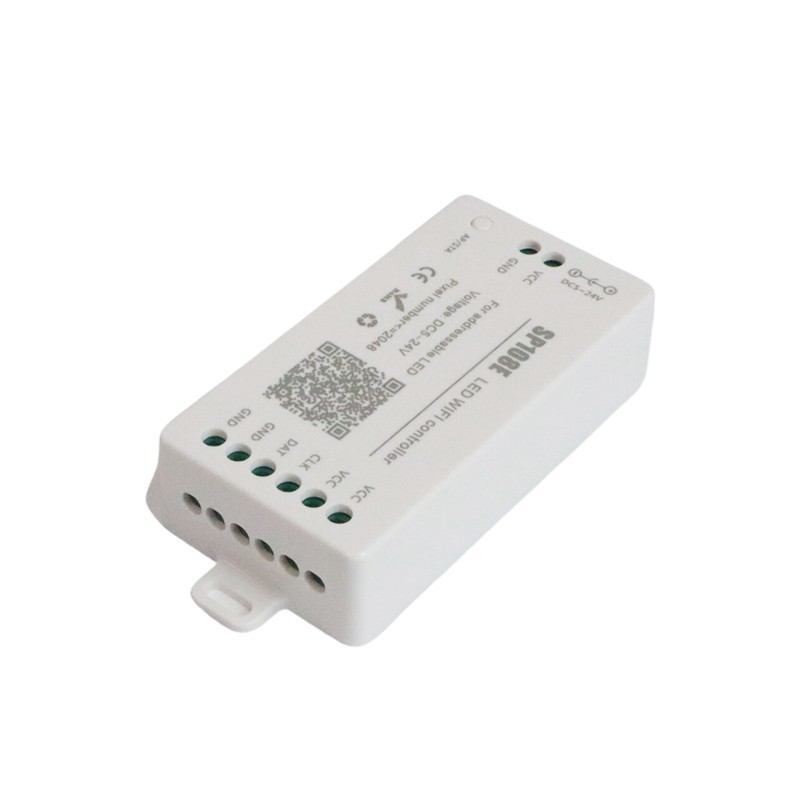

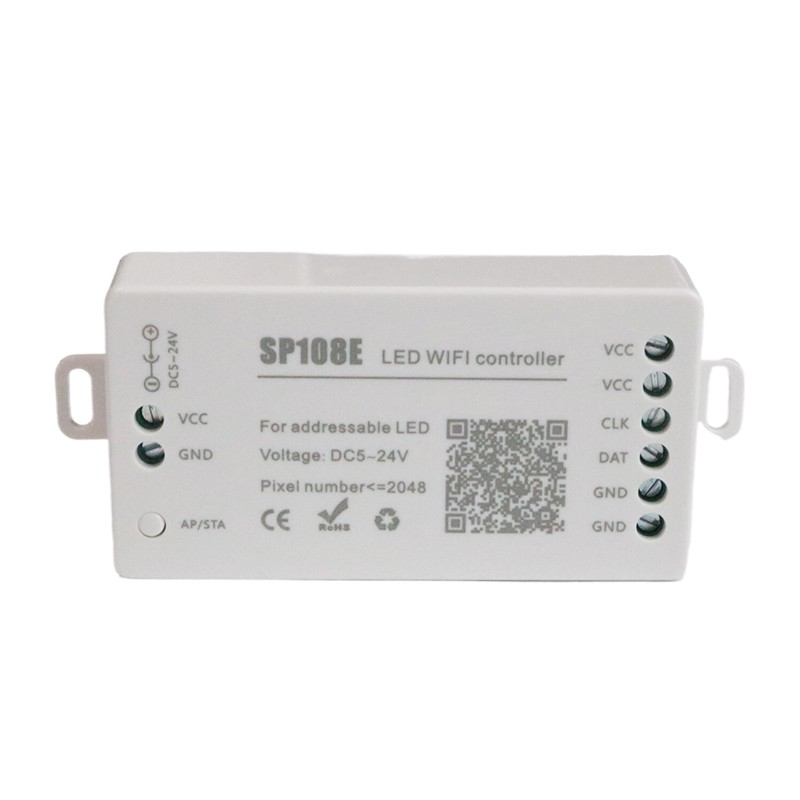

LED Controller SP108E

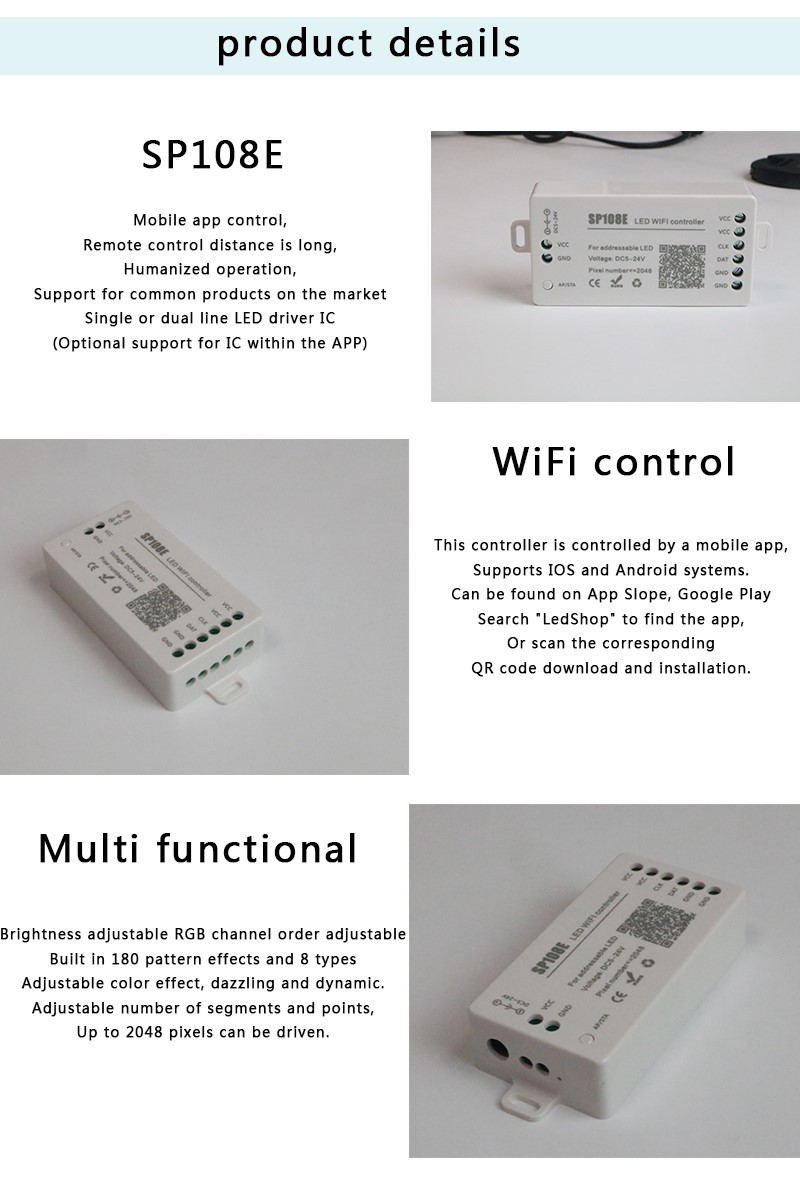

Features:
1) Long distance APP remote control via WIFI;
2) Support routing mode (AP) and LAN connection mode (STA);
3) Support almost every kind of one-wire or two-wire LED driver IC;
4) Brightness adjustable, with 180 kinds of patterns and 8 kind of color adjustable patterns;
5) Creatively using from-image-to-effect method for user to DIY any effect;
6) Support setting pixel number and segments number, able to control up to 2048 pixels;
7) DC5V~24V wide range working voltage, preventing reverse connection of power supply;
8) User setting saving;

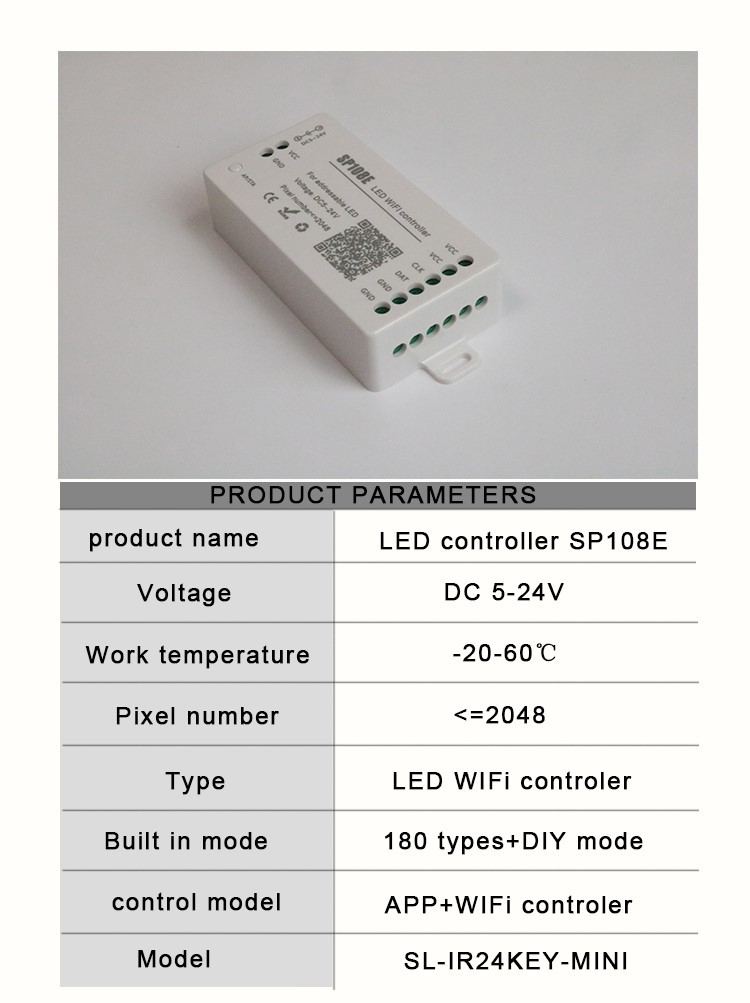

Specification
| Working Temperature | -20~60 Degrees Celsius |
| Working Voltage | DC5V~24V |
| Working Current | 20mA~130mA |
| Remote Distance | 30 Meters |
| Product Size | 85mm*45mm*22mm |
| Product Weight | 40g |
| Certificates | CE, RoHS |

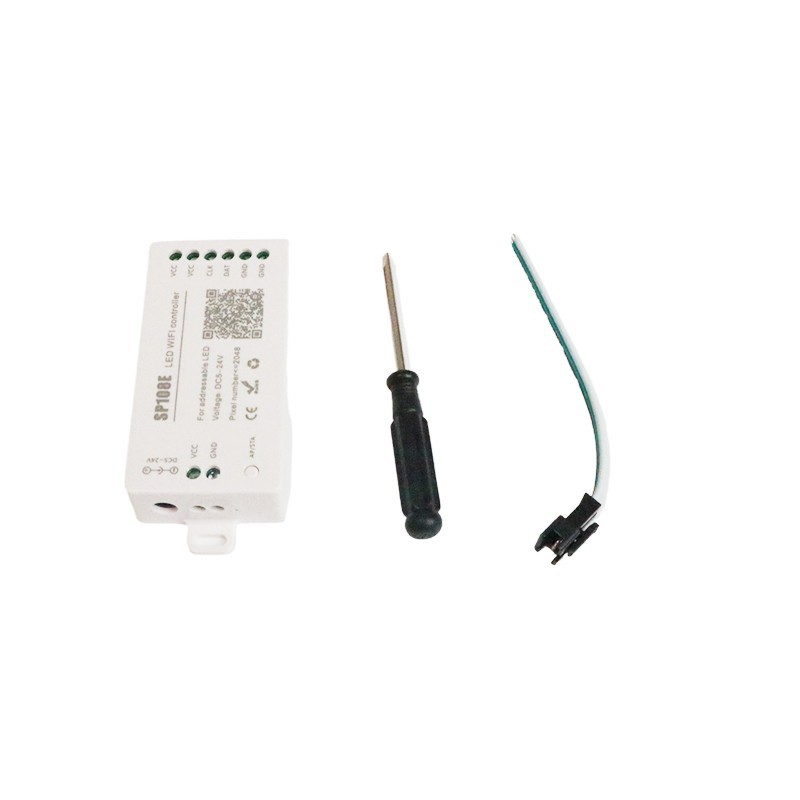

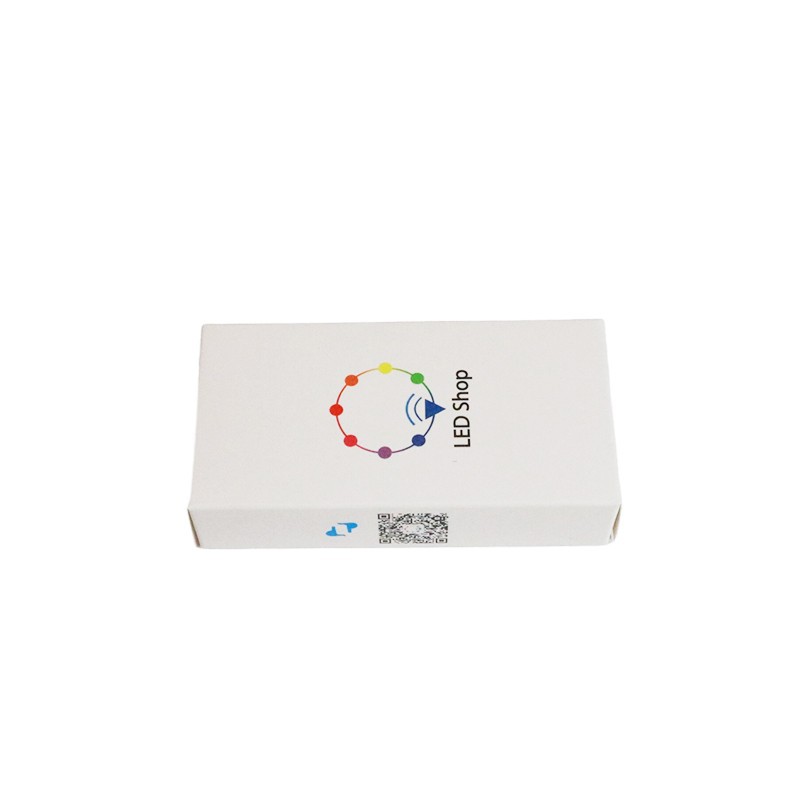

Package includes:
1x SP108E WIFI LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual (Note: power supply/mobile/controller/led strip not include!)
Note: Can not use 5.0G WIFI network , it just support 2.4G WIFI network
