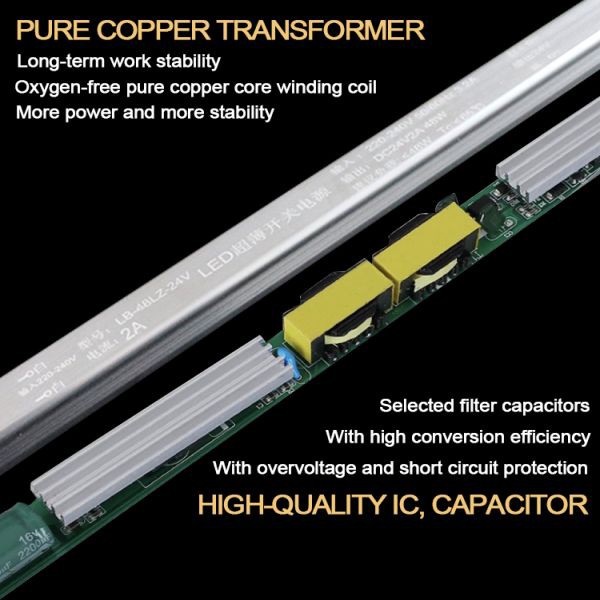

Features of ultra-thin waterproof light box power supply:
1. Built-in EMI filter, good anti-interference performance
2. Design soft start circuit and AC inrush current limit
3. Low operating temperature and long service life
4. Good insulation performance and high electrical strength
5.Full load high temperature burn-in 100% aging test
6.Wide input voltage range, in line with global usage standards
7.Small size, light weight and exquisite appearance
Instructions for use
1. The metal shell power cord and the shell are generally connected to the ground (FG). They must be reliably grounded to ensure safety. Do not connect the shell to the neutral line by mistake.
2 Before completing the installation and powering on for trial operation, please check and calibrate the connections on each terminal block again to ensure that the input and output, AC and DC, single-phase and multi-phase, positive and negative voltage and current values are correct. Can be run with power
3 Non-removable power supply case!
4. There is a circular mesh hole heat vent on the outside of the power supply. Please do not place other flammable and explosive items within 50 cm of the air outlet.
5.Do not place other objects within 5 cm to ensure that the power supply has a good heat dissipation environment and ensure safety.
6. Please calculate the load power accurately and do not overload. When the power supply is working, do not touch the casing with your hands.
7. Do not short-circuit the output. If there is no output, please turn off the power for one minute and then turn it on again.
8 Before use, please confirm whether the power supply is connected correctly and be careful not to reverse the power supply line.
9 Find switching power supplies with corresponding specifications based on input and output voltage, current and various protection functions
